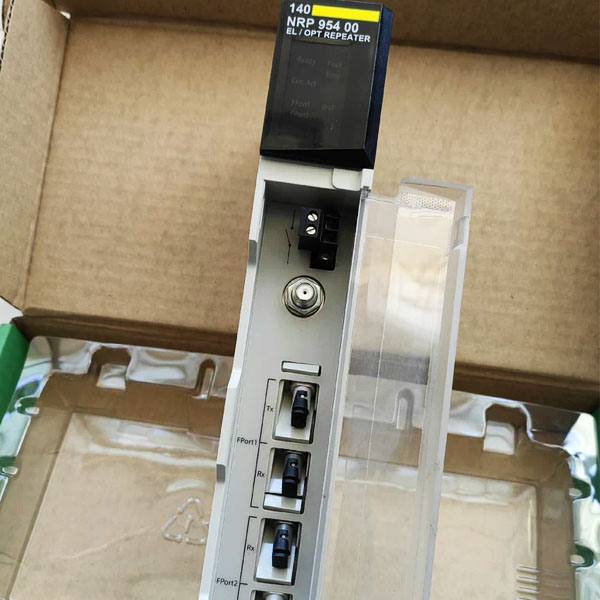

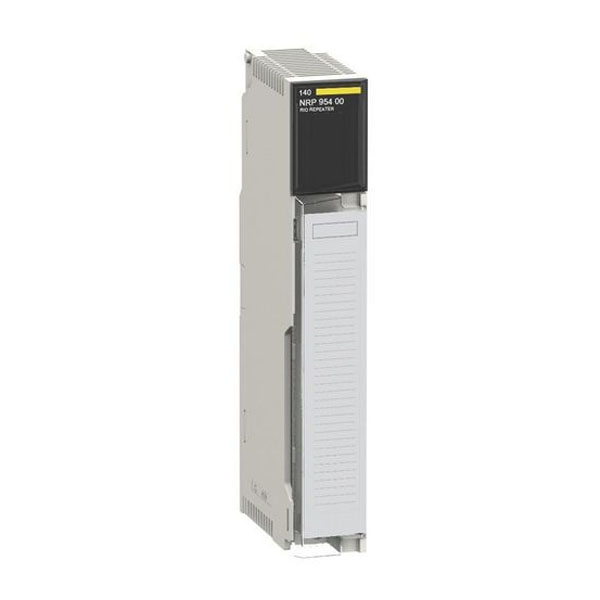

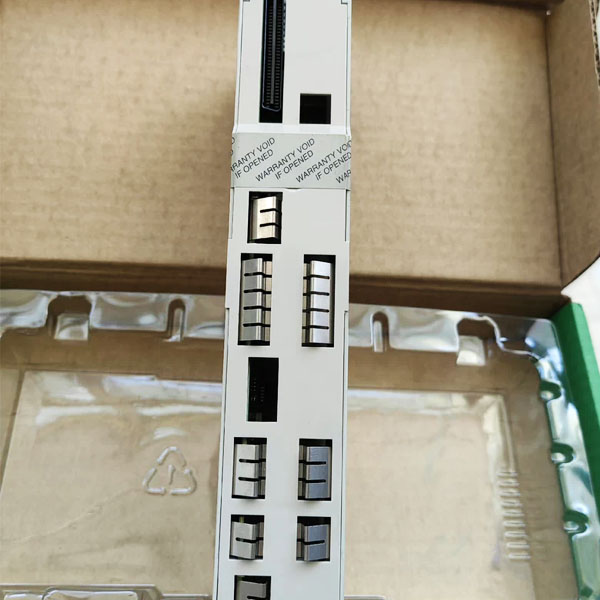

Schneider 140NRP95400 Modicon Quantum Fiber Optic Repeater

Product description:

Model：140NRP95400
Brand：Schneider Electric
Type：Quantum RIO S908 Fiber Repeater
Warranty：100% Brand New & Original, 1-Year Warranty
Shipping Service：Fedex/DHL Express Shipping Available

Get a price

Send a email

Product introduction

Specifications

Main
Range of Product	Modicon Quantum automation platform
Product or Component Type	Fibre optic repeater
Optic fiber type	Multi mode

Complementary
Bus current requirement	700 mA
Power dissipation in W	5 W
Inrush current	1 A at 5 V DC
Number of Port	2 fiber optic ST 1 coaxial connector
Local signalling	1 LED green RDY module status 1 LED red ERR internal fault, module failure 1 LED green coaxial communication status 2 LEDs green optical communication status 1 LED red FAULT error 1 LED red activity detected
Wavelength	0.000032284 in (820 nm)
Optic distance between 2 transceivers	6561.7 ft (2000 m) 50/125 µm)3.5 dBm 9842.5 ft (3000 m) 62.5/125 µm)3.5 dBm 9842.5 ft (3000 m) 100/140 µm)5 dBm
Attenuation	-20…-13 dB 50/125 µm) -16…-10 dB 62.5/125 µm) -10.5…-4 dB 100/140 µm)
Rise/fall time	20 ns
Receiver Sensitivity	- 30 dBm
Dynamic range	20 dB
Detected silence	-36 dBm
Marking	CE
Material	PC (polycarbonate)
AWG Gauge	AWG 14...AWG 1
Width	1.59 in (40.34 mm)
Height	9.8 in (250 mm)
Depth	4.09 in (103.85 mm)
Net Weight	1.221 lb(US) (0.554 kg)

Environment
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative humidity	0…95 %
Operating altitude	0...6561.68 ft (0...2000 m)
Standards	CSA C22.2 No 142 UL 508 FM Class 1 Division 2
Product Certifications	TÜV

Ordering and shipping details
Category	US1PC2118155
Discount Schedule	PC21
GTIN	3595864115238
Returnability	No

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	1.929 in (4.900 cm)
Package 1 Width	6.457 in (16.400 cm)
Package 1 Length	12.402 in (31.500 cm)
Package weight(Lbs)	21.023 oz (596.000 g)
