Main| Range of Product | Modicon Quantum automation platform |
|---|

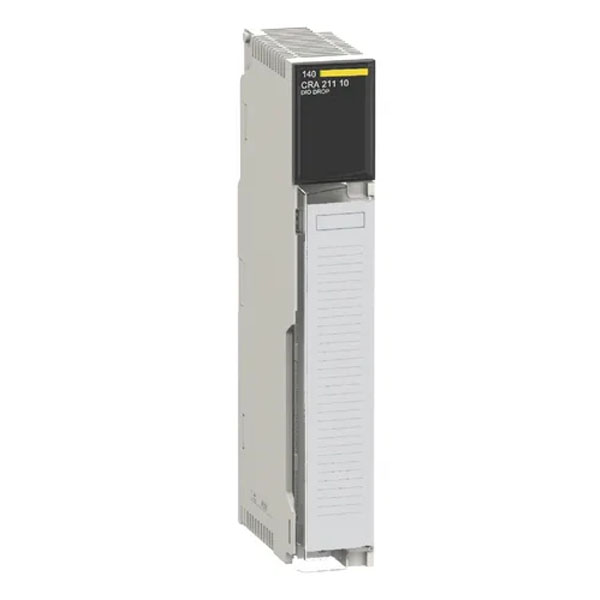

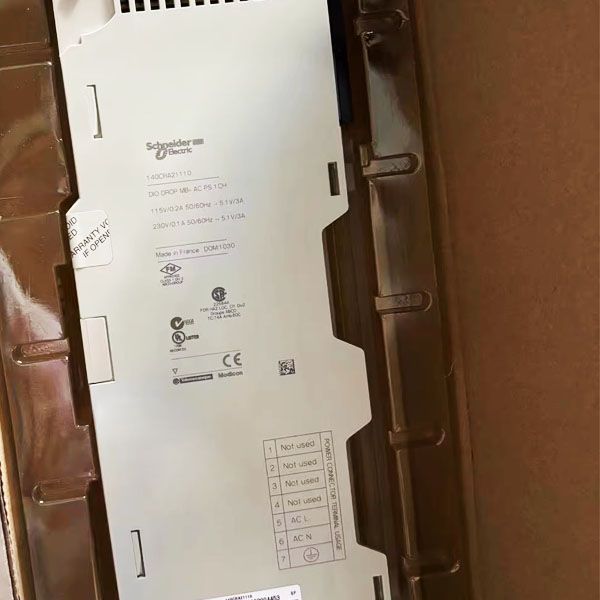

| Product or Component Type | DIO drop interface |
|---|
Complementary| Number of port | 1 single |
|---|
| [Us] rated supply voltage | 115/230 V AC |
|---|
| Supply voltage limits | 85…276 V |
|---|
| Supply frequency | 47...63 Hz |
|---|
| Maximum supply current | 0.2 A 115 V
0.4 A 230 V |
|---|
| Inrush current | 10 A 115 V
20 A 230 V |
|---|
| rated power in VA | 50 VA |
|---|
| Associated fuse rating | 1.5 A |
|---|
| Output voltage | 5.1 V |
|---|
| nominal output current | 3 A |
|---|
| Minimum load current | 0 A |
|---|
| Short-circuit protection | With |
|---|
| Output overvoltage protection | With |
|---|
| I/O words | 30 I/32 O |
|---|
| Typical backplanes | 3 positions
2 positions
6 positions
16 positions
10 positions
4 positions |
|---|
| Diagnostics startup | RAM address
RAM
Checksum |
|---|
| Diagnostics run time | RAM address
RAM
Checksum |
|---|
| Power dissipation in W | 11 W |
|---|
| Connections - Terminals | Terminal block, 7 poles |
|---|
| Module format | Standard |
|---|
Environment| Resistance to electrostatic discharge | 4 kV contact IEC 801-2
8 kV on air IEC 801-2 |
|---|
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
|---|
| Relative Humidity | 95 % without condensation |
|---|
| Operating altitude | <= 16404.2 ft (5000 m) |
|---|
| Protective treatment | TC |
|---|
| Standards | UL 508 |
|---|
| Product Certifications | CSA Class 1 Division 2
UL
DNV
C-tick
GOST |
|---|
Ordering and shipping details| Category | US1PC2118155 |
|---|
| Discount Schedule | PC21 |
|---|
| GTIN | 3595861136731 |
|---|
| Returnability | No |
|---|
Packing Units| Unit Type of Package 1 | PCE |
|---|
| Nbr. of units in pkg. | 1 |
|---|
| Package 1 Height | 1.969 in (5.000 cm) |
|---|
| Package 1 Width | 6.496 in (16.500 cm) |
|---|
| Package 1 Length | 12.402 in (31.500 cm) |
|---|
| Package weight(Lbs) | 24.303 oz (689.000 g) |
|---|
