Name: B&R 8AC130.60-1 ACOPOS Digital Mixed I/O Plug-in Module with Incremental Encoder Emulation
SKU: 0

PRODUCTS



Location: Home > Products > B&R > B&R 8AC130.60-1 ACOPOS Digital Mixed I/O Plug-in Module with Incremental Encoder Emulation

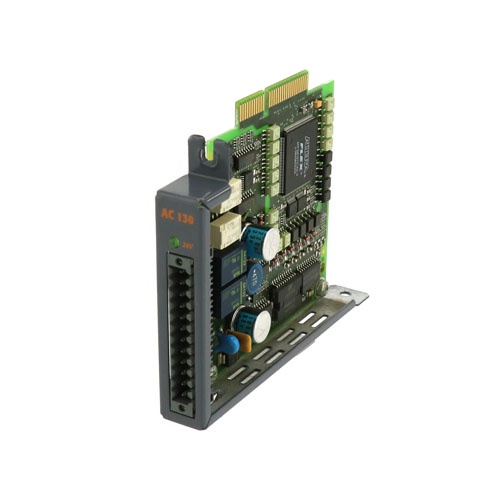

B&R 8AC130.60-1 ACOPOS Digital Mixed I/O Plug-in Module with Incremental Encoder Emulation

Product description:

Model: 8AC130.60-1
Brand: B&R
Type: ACOPOS plug-in module, 8 digital I/O configurable in pairs as 24 V inputs or outputs 400/100 mA, 2 digital outputs 2 A
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express

Get a price

Send a email

Product introduction

General information

Module type	ACOPOS plug-in module
B&R ID code	0x1068
Slot	Slots 3 and 4
Power consumption	Max. 0.8 W
Certifications
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
UL	cULus E225616 Power conversion equipment
KC	Yes

Inputs/Outputs

Module-side connection	12-pin multipoint connector
Status indicators	LED status indicator (24 V)
Configuration of digital inputs/outputs	Configurable in pairs as inputs or outputs

Incremental encoders

Counter size	16-bit
Input frequency	Max. 62.5 kHz
Evaluation	4x
Signal form	Square wave pulse
Encoder monitoring	No
Counter frequency	Max. 250 kHz
Reference frequency	Max. 62.5 kHz
Distance between edges	Min. 2.5 µs
Inputs
Input 1	Channel A
Input 2	Channel B
Input 3	Reference pulse R

Power supply

Voltage monitoring (24 V - LED)	Yes, supply voltage >18 V
Reverse polarity protection	Yes
Power supply
Minimum	18 VDC
Nominal	24 VDC
Maximum	30 VDC

Digital inputs

Quantity	Max. 8
Circuit	Sink
Switching threshold
Low	<5 V
High	>15 V
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Input current at nominal voltage
Channel 1-4	Approx. 10 mA
Channel 5-8	Approx. 5.5 mA
Electrical isolation
Channel - ACOPOS	Yes
Channel - Channel	No
Switching delay
Channel 1-4	Max. 5 µs
Channel 5-8	Max. 35 µs

Event counters

Signal form	Square wave pulse
Input frequency	Max. 100 kHz
Counter size	16-bit
Inputs
Input 1	Counter 1
Input 2	Counter 2

Digital outputs

Quantity	Max. 10
Readable outputs	Yes
Continuous current
Outputs 1 - 4	Max. 100 mA
Outputs 5 - 8	Max. 400 mA
Outputs 9 - 10	Max. 2 A
Short-circuit current at 24 V (until cutoff)
Outputs 1 - 4	Approx. 1 A
Outputs 5 - 8	Approx. 1.2 A
Outputs 9 - 10	Approx. 24 A
Electrical isolation
Output - ACOPOS	Yes
Output - Output	No
Switching frequency (resistive load)
Outputs 1 - 2	Max. 10 kHz
Outputs 3 - 4	Max. 10 kHz
Outputs 5 - 8	Max. 5 kHz
Outputs 9 - 10	Max. 100 Hz
Switching voltage
Minimum	18 VDC
Nominal	24 VDC
Maximum	30 VDC
Switching delay 0 → 1 and 1 → 0
Outputs 1 - 4	Max. 5 µs
Outputs 5 - 8	Max. 50 µs
Outputs 9 - 10	Max. 500 µs
Protection
Short-circuit proof	Yes
Overload-proof	Yes
Type
Outputs 1 - 4	Push-Pull transistor outputs
Outputs 5 - 10	High-side transistor outputs

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
