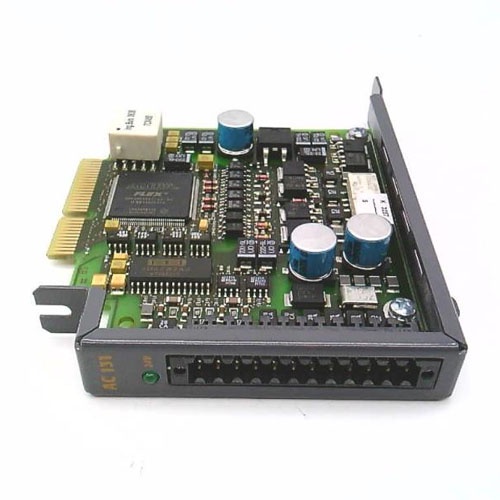

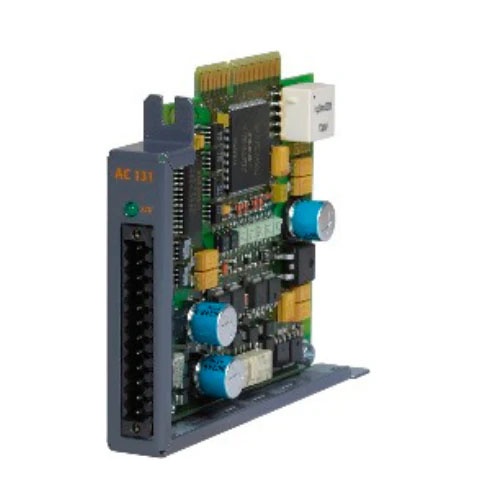

B&R 8AC131.60-1 ACOPOS Analog + Digital Mixed I/O Plug-in Module

Product description:

Model: 8AC131.60-1
Brand: B&R
Type: ACOPOS plug-in module, 2 analog inputs ±10 V, 2 digital I/Os configurable as 24 V input or output 45 mA
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express

Get a price

Send a email

Product introduction

General information

Module type	ACOPOS plug-in module
B&R ID code	0x11E9
Slot	Slots 2, 3 and 4
Power consumption	Max. 1 W
Certifications
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
UL	cULus E225616 Power conversion equipment
KC	Yes

Inputs/Outputs

Module-side connection	12-pin multipoint connector
Status indicators	24 V LED
Configuration of digital inputs/outputs	Individually configurable as digital input or output

Power supply

Voltage monitoring (24 V - LED)	Yes, supply voltage >18 V
Reverse polarity protection	Yes
Power supply
Minimum	18 VDC
Nominal	24 VDC
Maximum	30 VDC

Digital inputs

Quantity	Max. 2
Modulation compared to ground potential	Max. ±50 V
Circuit	Sink
Input current at nominal voltage	Approx. 8 mA
Switching threshold
Low	<5 V
High	>15 V
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Electrical isolation
Channel - ACOPOS	Yes
Channel - Channel	No
Switching delay
Counters	Max. 5 µs
Digital input	Max. 55 µs (digitally filtered)

Event counters

Signal form	Square wave pulse
Input frequency	Max. 100 kHz
Counter size	16-bit
Inputs
Input 1	Counter 1
Input 2	Counter 2

Analog inputs

Quantity	2
Digital converter resolution	12-bit
Conversion time	<50 µs
Output format	INT16 $8000 - $7FF0 LSB = $0010 = 4.883 mV
Variant	Differential input or single-ended input
Electrical isolation
Input - ACOPOS	Yes
Input - Input	No
Input signal
Nominal	-10 to +10 V
Maximum	-15 to +15 V
Operating modes	Cyclic measurement synchronous to 50 µs ACOPOS clock
Conversion procedure	Successive approximation
Input filter	Analog third-order low-pass filter / cutoff frequency: 10 kHz
Gain drift	Max. ±0.006% / °C
Offset drift	Max. ±0.0005% / °C
Common-mode rejection
DC	Min. -73 dB
50 Hz	Min. -73 dB
Crosstalk between analog inputs	Min. -90 dB at 1 kHz
Nonlinearity	±1 LSB
Differential input impedance	>10 MΩ
Modulation compared to ground potential	Max. ±50 V
Modulation between analog input channels	Max. ±5 V
Basic accuracy at 25°C	±0.05%

Digital outputs

Quantity	Max. 2
Readable outputs	Yes
Continuous current	Max. 45 mA
Short-circuit current at 24 V (until cutoff)	Approx. 0.3 A
Switching frequency (resistive load)	Max. 100 kHz
Switching delay	Max. 5 µs
Type	Push-Pull transistor outputs
Electrical isolation
Output - ACOPOS	Yes
Output - Output	No
Switching voltage
Minimum	18 VDC
Nominal	24 VDC
Maximum	30 VDC
Protection
Short-circuit proof	Yes
Overload-proof	Yes

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
