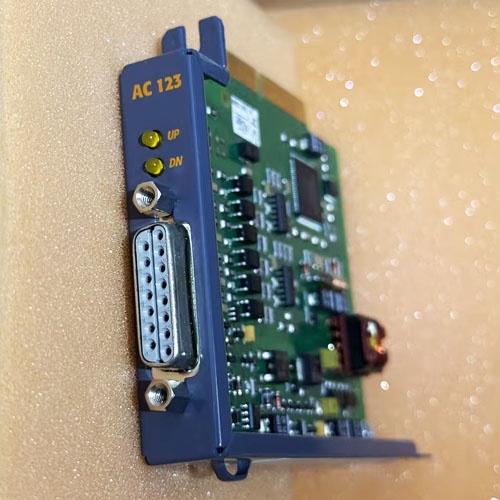

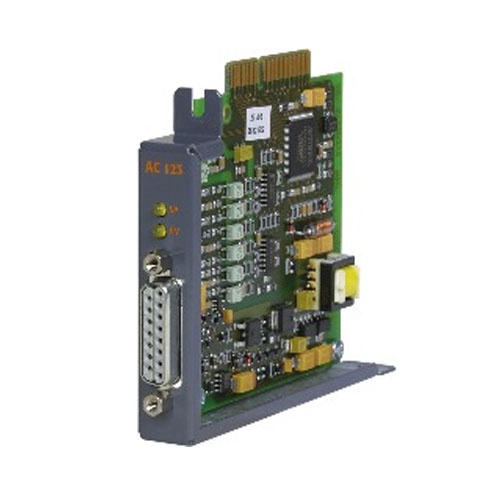

B&R 8AC123.60-1 ACOPOS Incremental & SSI Absolute Encoder Interface Plug-in Module

Product description:

Model: 8AC123.60-1
Brand: B&R
Type: ACOPOS plug-in module, incremental encoder and SSI absolute encoder interface
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Delivery via FedEx and DHL

Get a price

Send a email

Product introduction

General information

Module type	ACOPOS plug-in module
B&R ID code	0x1067
Slot	Slots 2, 3 and 4
Power consumption	Max. 7.5 W Depends on the current consumption of the connected encoder
Certifications
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
UL	cULus E225616 Power conversion equipment
KC	Yes

Encoder inputs

Quantity	1
Signal transmission	Differential signal transfer
Module-side connection	15-pin female DSUB
Status indicators	UP/DN LEDs
Electrical isolation
Encoder - ACOPOS	Yes
Encoder monitoring	Yes
Max. encoder cable length	50 m

Encoder power supply

Supply voltages	Internal, optionally 5 V / 15 V
Load capacity
5 VDC	350 mA
15 VDC	350 mA
Short-circuit proof, overload protection	Yes
Sense lines
For 5 VDC	Yes, 2, compensation of max. 2 V
For 15 VDC	No

Incremental encoders

Counter size	32-bit
Input frequency	Max. 200 kHz
Evaluation	4x
Signal form	Square wave pulse
Counter frequency	Max. 800 kHz
Reference frequency	Max. 200 kHz
Distance between edges	Min. 0.6 µs
Inputs	A, A, B, B, R, R
Differential voltage inputs A, B, R
Minimum	2.5 V
Maximum	6 V

SSI absolute encoder

Coding	Gray, binary
Baud rate	200 kbit/s
Word size	Max. 31-bit
Differential voltage clock output - 120 Ω
Minimum	2.5 V
Maximum	5 V
Differential voltage data input
Minimum	2.5 V
Maximum	6 V

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
