  • 5PC600.SX02-00 B&R APC620 System Unit

›

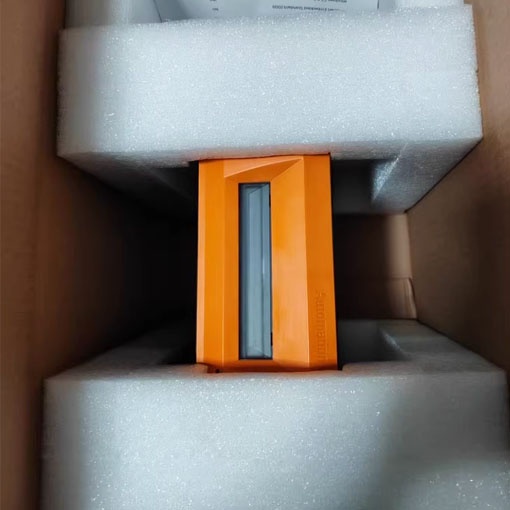

5PC600.SX02-00 B&R APC620 System Unit

Product description:

Model: 5PC600.SX02-00
Brand: B&R
Type: APC620 system unit 2 PCI slots, 1 slot for Automation Panel Link transmitter, 1 drive slot,
Smart Display Link/DVI-I, connections for 2x RS232, 2x USB 2.0, 2x ETH 10/100, AC97 sound, PS/2 keyboard/mouse, 24 VDC.
Warranty: 100% New Original
Shipping: Fast Global Shipping via FedEx and DHL Express
Get a price
Send a email

Product introduction

5PC600.SX02-00

General information
Dongle portYes
LEDsPower, HDD, Link 1, Link 2
B&R ID code0x1BB6
CoolingPassive via heat sink and optionally supported with an active fan kit
Battery
TypeRenata 950 mAh
Service life4 years
RemovableYes, accessible behind the orange cover
VariantLithium ion
Power buttonYes
Reset buttonYes
BuzzerYes
Keyboard/MousePS/2 (combined)
Certifications
CEYes
UKCAYes
ULcULus E115267
Industrial control equipment
KCYes
Controller
BootloaderBIOS
Real-time clock
AccuracyComponent-dependent
Battery-backedYes
Power failure logic
ControllerMTCX
Buffer time10 ms
Graphics
ControllerDepends on the CPU board being used
SRAM
Noteoptional
Interfaces
COM1
TypeRS232, modem supported, not galvanically isolated
Variant9-pin male DSUB connector
UART16550-compatible, 16-byte FIFO buffer
Max. baud rate115 kbit/s
COM2
TypeRS232, modem supported, not galvanically isolated
Variant9-pin male DSUB connector
UART16550-compatible, 16-byte FIFO buffer
Max. baud rate115 kbit/s
CompactFlash slot 1
Quantity1
TypeType I
USB
Quantity2
TypeUSB 2.0
VariantType A
Transfer rateLow speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
Current-carrying capacityMax. 500 mA per connection
Ethernet
Quantity2
VariantShielded RJ45 port
Transfer rate10/100 Mbit/s
Max. baud rate100 Mbit/s
Panel/Monitor interface
VariantFemale DVI-I connector
TypeSDL/DVI/Monitor
CAN
Noteoptional
Audio
TypeAC97 sound
InputsMicrophone, Line In
OutputsLine Out
Add-on interface slot
Quantity1
Slots
PCI slots
Quantity2
Type32-bit
VariantPCI half-size
Standard2.2
Bus speed33 MHz
Slide-in drives1
Slide-in compact drivesNo
Add-on drivesoptional
Automation Panel Link slotYes
Add-on UPS slotYes
Slot for fan kitYes
Electrical properties
Nominal voltage24 VDC ±25%
Nominal current3.8 A
Inrush currentTyp. 7 A, max. 40 A for < 300 µs
Operating conditions
Degree of protection per EN 60529IP20
Ambient conditions
Temperature
OperationComponent-dependent
Storage-20 to 60°C
Transport-20 to 60°C
Relative humidity
OperationComponent-dependent
StorageComponent-dependent
TransportComponent-dependent
Vibration
Operation (continuous)2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Operation (occasional)2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Storage2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Transport2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock
Operation15 g, 11 ms
Storage30 g, 15 ms
Transport30 g, 15 ms
Elevation
OperationMax. 3000 m (component-dependent)
Mechanical properties
Housing
MaterialGalvanized plate
Front coverDyed orange plastic (similar to Pantone 144CV)
CoatingLight gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV)
Dimensions
Width114.9 mm with heat sink 5AC600.HS01-00 and 5AC600.HS01-01
130.1 mm with heat sink 5AC600.HS01-02
Height270 mm
Depth253 mm
WeightApprox. 4500 g (component-dependent)
