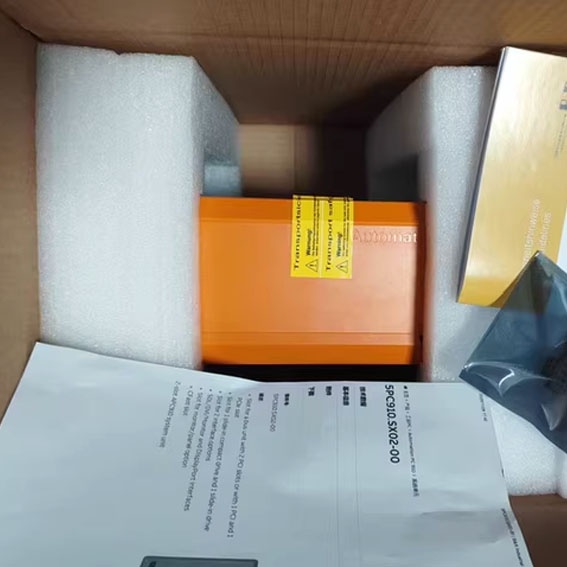

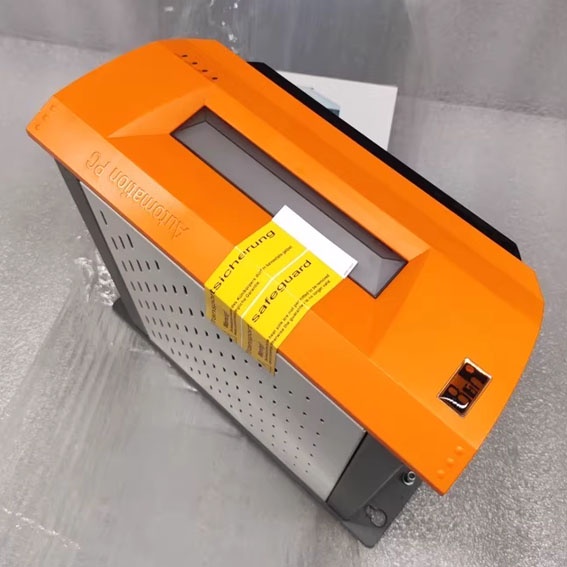

5PC600.SX05-00

• Technical Data
• Basic Information
• Accessories
• Downloads

• General information

  Dongle port	Yes
  LEDs	Power, HDD, Link 1, Link 2
  B&R ID code	0x1D13
  Cooling	Passive via heat sink and optionally supported with an active fan kit
  Battery
  Type	Renata 950 mAh
  Service life	4 years
  Removable	Yes, accessible behind the orange cover
  Variant	Lithium ion
  Power button	Yes
  Reset button	Yes
  Buzzer	Yes
  Keyboard/Mouse	PS/2 (combined)
  Certifications
  CE	Yes
  UKCA	Yes
  UL	cULus E115267 Industrial control equipment

  Controller

  Bootloader	BIOS
  Real-time clock
  Accuracy	Component-dependent
  Battery-backed	Yes
  Power failure logic
  Controller	MTCX
  Buffer time	10 ms
  Graphics
  Controller	Depends on the CPU board being used
  SRAM
  Note	optional

  Interfaces

  COM1
  Type	RS232, modem supported, not galvanically isolated
  Variant	9-pin male DSUB connector
  UART	16550-compatible, 16-byte FIFO buffer
  Max. baud rate	115 kbit/s
  COM2
  Type	RS232, modem supported, not galvanically isolated
  Variant	9-pin male DSUB connector
  UART	16550-compatible, 16-byte FIFO buffer
  Max. baud rate	115 kbit/s
  CompactFlash slot 1
  Quantity	1
  Type	Type I
  USB
  Quantity	2
  Type	USB 2.0
  Variant	Type A
  Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
  Current-carrying capacity	Max. 500 mA per connection
  Ethernet
  Quantity	2
  Variant	Shielded RJ45 port
  Transfer rate	10/100 Mbit/s
  Max. baud rate	100 Mbit/s
  Panel/Monitor interface
  Variant	Female DVI-I connector
  Type	SDL/DVI/Monitor
  CAN
  Note	optional
  Audio
  Type	AC97 sound
  Inputs	Microphone, Line In
  Outputs	Line Out
  Add-on interface slot
  Quantity	1

  Slots

  PCI slots
  Quantity	5
  Type	32-bit
  Variant	PCI half-size
  Standard	2.2
  Bus speed	33 MHz
  Slide-in drives	2
  Slide-in compact drives	No
  Add-on drives	optional
  Automation Panel Link slot	Yes
  Add-on UPS slot	Yes
  Slot for fan kit	Yes

  Electrical properties

  Nominal voltage	24 VDC ±25%
  Nominal current	5 A
  Inrush current	Typ. 10 A, max. 40 A for < 300 μs

  Operating conditions

  Degree of protection per EN 60529

  IP20

  Ambient conditions

  Temperature
  Operation	Component-dependent
  Storage	-20 to 60°C
  Transport	-20 to 60°C
  Relative humidity
  Operation	Component-dependent
  Storage	Component-dependent
  Transport	Component-dependent
  Vibration
  Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
  Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
  Storage	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
  Transport	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
  Shock
  Operation	15 g, 11 ms
  Storage	30 g, 15 ms
  Transport	30 g, 15 ms
  Elevation
  Operation	Max. 3000 m (component-dependent)

  Mechanical properties

  Housing
  Material	Galvanized plate
  Front cover	Dyed orange plastic (similar to Pantone 144CV)
  Coating	Light gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV)
  Dimensions
  Width	195.8 mm with heat sink 5AC600.HS01-00 and 5AC600.HS01-01 211 mm with heat sink 5AC600.HS01-02
  Height	270 mm
  Depth	253 mm
  Weight	Approx. 5700 g (component-dependent)
