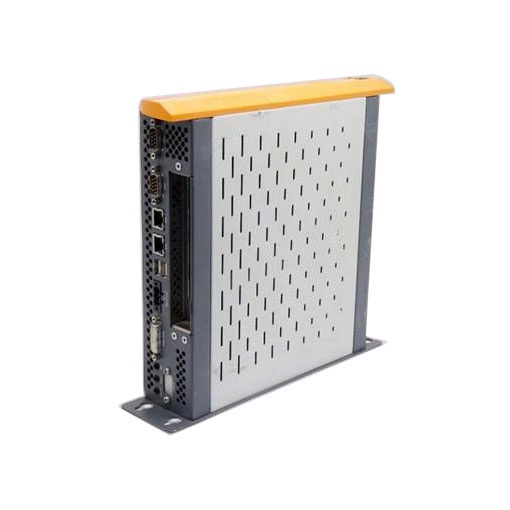

General information
| Dongle port | Yes |
| LEDs | Power, HDD, Link 1, Link 2 |
| B&R ID code | 0x1B7D |
| Cooling | Passive via heat sink and optionally supported with an active fan kit |
| Battery |
|
| Type | Renata 950 mAh |
| Service life | 4 years |
| Removable | Yes, accessible behind the orange cover |
| Variant | Lithium ion |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| Keyboard/Mouse | PS/2 (combined) |
| Certifications |
|
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267
Industrial control equipment |
| KC | Yes |
Controller
| Bootloader | BIOS |
| Real-time clock |
|
| Accuracy | Component-dependent |
| Battery-backed | Yes |
| Power failure logic |
|
| Controller | MTCX |
| Buffer time | 10 ms |
| Graphics |
|
| Controller | Depends on the CPU board being used |
| SRAM |
|
| Note | optional |
Interfaces
| COM1 |
|
| Type | RS232, modem supported, not galvanically isolated |
| Variant | 9-pin male DSUB connector |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 115 kbit/s |
| COM2 |
|
| Type | RS232, modem supported, not galvanically isolated |
| Variant | 9-pin male DSUB connector |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 |
|
| Quantity | 1 |
| Type | Type I |
| USB |
|
| Quantity | 2 |
| Type | USB 2.0 |
| Variant | Type A |
| Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Current-carrying capacity | Max. 500 mA per connection |
| Ethernet |
|
| Quantity | 2 |
| Variant | Shielded RJ45 port |
| Transfer rate | 10/100 Mbit/s |
| Max. baud rate | 100 Mbit/s |
| Panel/Monitor interface |
|
| Variant | Female DVI-I connector |
| Type | SDL/DVI/Monitor |
| CAN |
|
| Note | optional |
| Audio |
|
| Type | AC97 sound |
| Inputs | Microphone, Line In |
| Outputs | Line Out |
| Add-on interface slot |
|
| Quantity | 1 |
Slots
| PCI slots |
|
| Quantity | 1 |
| Type | 32-bit |
| Variant | PCI half-size |
| Standard | 2.2 |
| Bus speed | 33 MHz |
| Slide-in drives | No |
| Slide-in compact drives | No |
| Add-on drives | optional |
| Automation Panel Link slot | No |
| Add-on UPS slot | Yes |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 3.8 A |
| Inrush current | Typ. 7 A, max. 40 A for < 300 µs |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature |
|
| Operation | Component-dependent |
| Storage | -20 to 60°C |
| Transport | -20 to 60°C |
| Relative humidity |
|
| Operation | Component-dependent |
| Storage | Component-dependent |
| Transport | Component-dependent |
| Vibration |
|
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock |
|
| Operation | 15 g, 11 ms |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Elevation |
|
| Operation | Max. 3000 m (component-dependent) |
Mechanical properties
| Housing |
|
| Material | Galvanized plate |
| Front cover | Dyed orange plastic (similar to Pantone 144CV) |
| Coating | Light gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV) |
| Dimensions |
|
| Width | 75.4 mm with heat sink 5AC600.HS01-00 and 5AC600.HS01-01
90.6 mm with heat sink 5AC600.HS01-02 |
| Height | 270 mm |
| Depth | 251 mm |
| Weight | Approx. 3400 g (component-dependent) |
