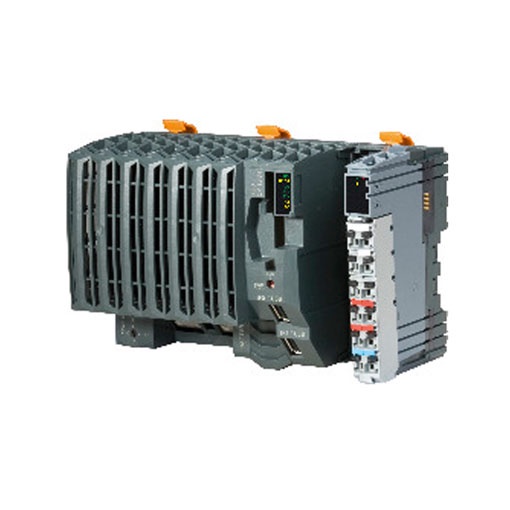

B&R X20CP1483-1 X20 PLC CPU Module

Product description:

Model: X20CP1483-1
Brand: B&R
Type: X20 Series Enhanced Modular PLC CPU Module (1 Slot)
Description:
Intel x86-based, 100 MHz-compatible CPU with integrated I/O processor
Onboard Ethernet, POWERLINK and USB
1 slot for modular interface expansion
CompactFlash as removable application memory
Fanless
Warranty: 100% New Original
Shipping: Fast Global Shipping via FedEx and DHL Express
Get a price
Send a email

Product introduction

Short description
Interfaces1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
System moduleController
General information
B&R ID code0xAEC5
CoolingFanless
Status indicatorsCPU function, Ethernet, POWERLINK, CompactFlash, battery
Diagnostics
BatteryYes, using LED status indicator and software
CPU functionYes, using LED status indicator
CompactFlashYes, using LED status indicator
EthernetYes, using LED status indicator
POWERLINKYes, using LED status indicator
TemperatureYes, using software register
Support
ACOPOS supportYes
Visual Components supportYes
Power consumption without memory card, interface module and USB6 W
Power consumption for X2X Link power supply 1.42 W
Power consumption
Internal I/O0.6 W
Additional power dissipation caused by actuators (resistive) [W]-
Certifications
CEYes
UKCAYes
CRA (Cyber Resilience Act)Evaluation ongoing
ATEXZone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
ULcULus E115267
Industrial control equipment
HazLoccCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5
DNVTemperature: B(0 to 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)
CCSYes
LRENV1
KRYes
ABSYes
BVEC33B
Temperature: 5 - 55°C
Vibration: 4 g
EMC: Bridge and open deck
KCYes
CPU and X2X Link power supply
Input voltage24 VDC -15% / +20%
Input currentMax. 2.2 A
FuseIntegrated, cannot be replaced
Reverse polarity protectionYes
X2X Link power supply output
Nominal output power7 W
Parallel connectionYes
Redundant operationYes
Input I/O power supply
Input voltage24 VDC -15% / +20%
FuseRequired line fuse: Max. 10 A, slow-blow
Output I/O power supply
Nominal output voltage24 VDC
Permissible contact load10 A
Power supply - General information
Status indicatorsOverload, operating status, module status, RS232 data transfer
Diagnostics
RS232 data transferYes, using LED status indicator
Module run/errorYes, using LED status indicator and software
OverloadYes, using LED status indicator and software
Electrical isolation
I/O supply - I/O power supplyNo
CPU/X2X Link supply - CPU/X2X Link power supplyYes
Controller
CompactFlash slot1
Real-time clockNonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C
FPUYes
Processor
Typex86 100 (compatible)
Clock frequency100 MHz
L2 cache-
L1 cache for data and program code16 kB
Integrated I/O processorProcesses I/O data points in the background
Modular interface slots1
Remanent variablesMax. 32 kB
Shortest task class cycle time1 ms
Typical instruction cycle time0.09 μs
Data buffering
Battery monitoringYes
Lithium batteryAt least 3 years
Standard memory
RAM64 MB SDRAM
User RAM128 kB SRAM
Interfaces
Interface IF1
SignalRS232
VariantConnection via 12-pin terminal block X20TB12
Max. distance900 m
Transfer rateMax. 115.2 kbit/s
Interface IF2
SignalEthernet
Variant1x RJ45 shielded
Line lengthMax. 100 m between 2 stations (segment length)
Transfer rate10/100 Mbit/s
Transfer
Physical layer10BASE-T/100BASE-TX
Half-duplexYes
Full-duplexYes
AutonegotiationYes
Auto-MDI/MDIXYes
Interface IF3
FieldbusPOWERLINK (V1/V2) managing or controlled node
TypeType 4
Variant1x RJ45 shielded
Line lengthMax. 100 m between 2 stations (segment length)
Transfer rate100 Mbit/s
Transfer
Physical layer100BASE-TX
Half-duplexYes
Full-duplexPOWERLINK mode: No / Ethernet mode: Yes
AutonegotiationYes
Auto-MDI/MDIXYes
Interface IF4
TypeUSB 1.1
VariantType A
Max. output current0.5 A
Interface IF5
TypeUSB 1.1
VariantType A
Max. output current0.5 A
Interface IF6
FieldbusX2X Link master
Electrical properties
Electrical isolationEthernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC
Operating conditions
Mounting orientation
HorizontalYes
VerticalYes
Installation elevation above sea level
0 to 2000 mNo limitation
>2000 mReduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529IP20
Ambient conditions
Temperature
Operation
Horizontal mounting orientation-25 to 60°C
Vertical mounting orientation-25 to 50°C
DeratingSee section "Derating".
Storage-40 to 85°C
Transport-40 to 85°C
Relative humidity
Operation5 to 95%, non-condensing
Storage5 to 95%, non-condensing
Transport5 to 95%, non-condensing
Mechanical properties
NoteOrder application memory (CompactFlash) separately
Backup battery included in delivery
X20 end cover plate (right) included in delivery
12-pin X20 terminal block included in delivery
Interface module slot covers included in delivery
Dimensions
Width150 mm
Height99 mm
Depth85 mm
Weight300 g
