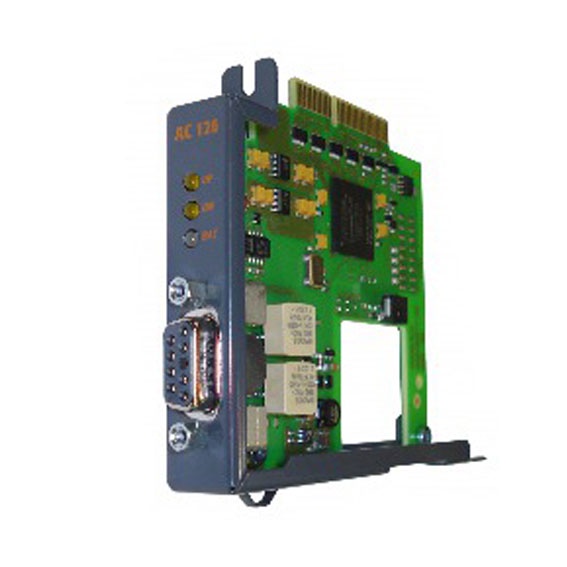

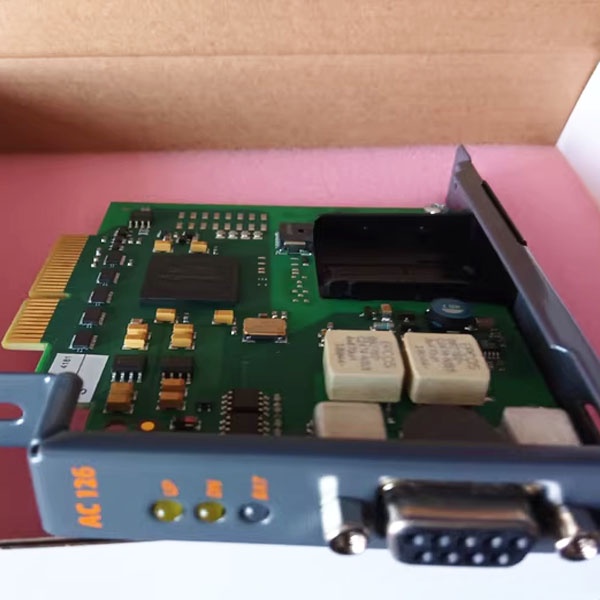

B&R 8AC126.60-1 ACOPOS EnDat 2.2 Encoder Interface Plug-in Module

Product description:

Model: 8AC126.60-1
Brand: B&R
Type: ACOPOS plug-in module, EnDat 2.2 encoder interface
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express

Get a price

Send a email

Product introduction

General information

Module type	ACOPOS plug-in module
B&R ID code	0xBD5A
Slot	Slots 2, 3 and 4
Max. power consumption	4.4 W
Certifications
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
UL	cULus E225616 Power conversion equipment
KC	Yes

Encoder connection

Module-side connection	9-pin female DSUB
Status indicators	UP/DN LEDs, BAT LED
Electrical isolation
Encoder - ACOPOS	No
Encoder monitoring	Yes
Max. encoder cable length	100 m Depends on the cross section of the power supply wires in the encoder cable

Encoder power supply

Output voltage	Typ. 12 V
Load capacity	300 mA
Protective measures
Overload-proof	Yes
Short-circuit proof	Yes

Synchronous serial interface

Signal transmission	RS485
Baud rate	6.25 Mbit/s

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
