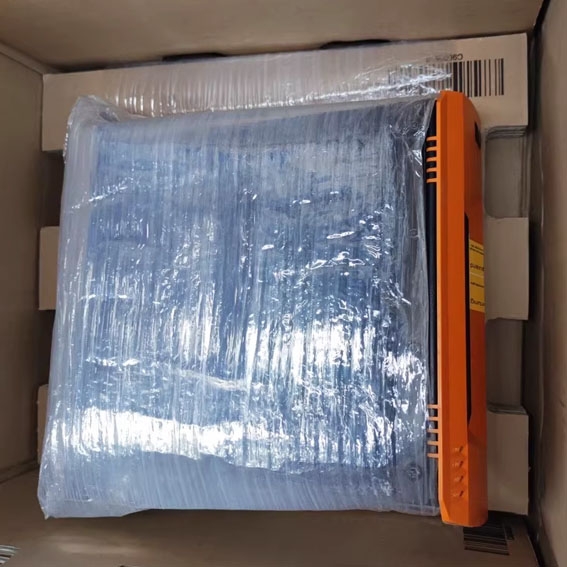

5PC810.SX02-00 B&R Industrial Automation

Product description:

Model: 5PC810.SX02-00
Brand: B&R
Type: APC810 system unit 2 slots (PCI Ex- press, PCI, depends on bus), 1 slot for Automation Panel Link transmitter, 1 slide-in compact and 1 slide-in slot, Smart Display Link/ DVI/Monitor, 2x RS232, 5x USB 2.0, 2x ETH 10/100/1000, 24 VDC
Warranty: 100% New Original
Shipping: Fast Global Shipping via FedEx and DHL Express
Get a price
Send a email

Product introduction

General information
Dongle portYes
LEDsPower, HDD, Link 1, Link 2
B&R ID code0xA3C7
CoolingPassive via heat sink and optionally supported with an active fan kit
Battery
TypeRenata 950 mAh
Service life2½ years
RemovableYes, accessible behind the orange front door
VariantLithium ion
Power buttonYes
Reset buttonYes
BuzzerYes
Certifications
CEYes
UKCAYes
ULcULus E115267
Industrial control equipment
Controller
BootloaderBIOS
Real-time clock
Battery-backedYes
Power failure logic
ControllerMTCX
Buffer time10 ms
Graphics
ControllerDepends on the CPU board being used
SRAM
Size512 kB
Battery-backedYes
Remanent variables in power failure mode192 kB (for e.g. Automation Runtime, see Automation Help)

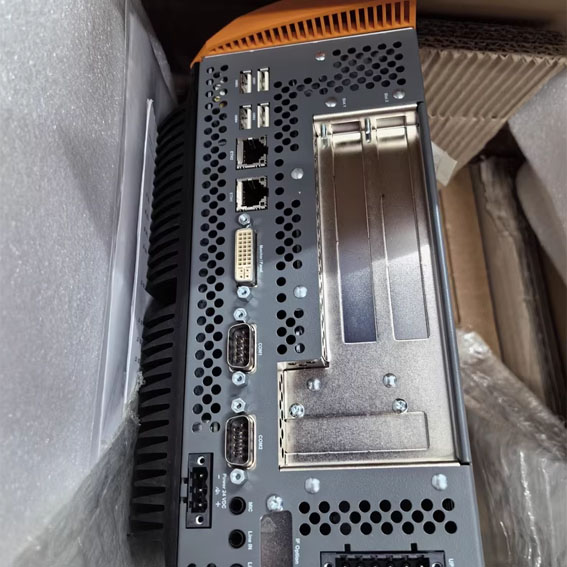

Interfaces
COM1
TypeRS232, modem supported, not galvanically isolated
Variant9-pin male DSUB connector
UART16550-compatible, 16-byte FIFO buffer
Max. baud rate115 kbit/s
COM2
TypeRS232, modem supported, not galvanically isolated
Variant9-pin male DSUB connector
UART16550-compatible, 16-byte FIFO buffer
Max. baud rate115 kbit/s
CompactFlash slot 1
Quantity1
TypeType I
CompactFlash slot 2
Quantity1
TypeType I
USB
Quantity5
TypeUSB 2.0
VariantType A
Transfer rateLow speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
Current-carrying capacityMax. 500 mA or 1 A per connection
Ethernet
Quantity2
VariantShielded RJ45 port
Transfer rate10/100/1000 Mbit/s
Max. baud rate1 Gbit/s
Panel/Monitor interface
VariantFemale DVI-I connector
TypeSDL/DVI/Monitor
CAN
NoteOptional
Audio
TypeAC97 sound
InputsMicrophone, Line In
OutputsLine Out
Add-on interface slot
Quantity1
Slots
PCI/PCIe slots
Quantity2 PCI slots or 1 PCI and 1PCIe slot
Slide-in drives1
Slide-in compact drives1
Automation Panel Link slotYes
Add-on UPS slotYes
Slot for fan kitYes
Electrical properties
Nominal voltage24 VDC ±25%, SELV
Nominal current6 A
Inrush currentTyp. 7 A, max. 50 A for < 300 µs
Overvoltage category per EN 61131-2II
Galvanic isolationYes
Operating conditions
Degree of protection per EN 60529IP20
Ambient conditions
Temperature
OperationComponent-dependent
Storage-20 to 60°C
Transport-20 to 60°C
Relative humidity
OperationComponent-dependent
StorageComponent-dependent
TransportComponent-dependent
Vibration
Operation (continuous)2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Operation (occasional)2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Storage2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Transport2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock
Operation15 g, 11 ms
Storage30 g, 15 ms
Transport30 g, 15 ms
Elevation
OperationMax. 3000 m (component-dependent)
Mechanical properties
Housing
MaterialGalvanized plate, plastic

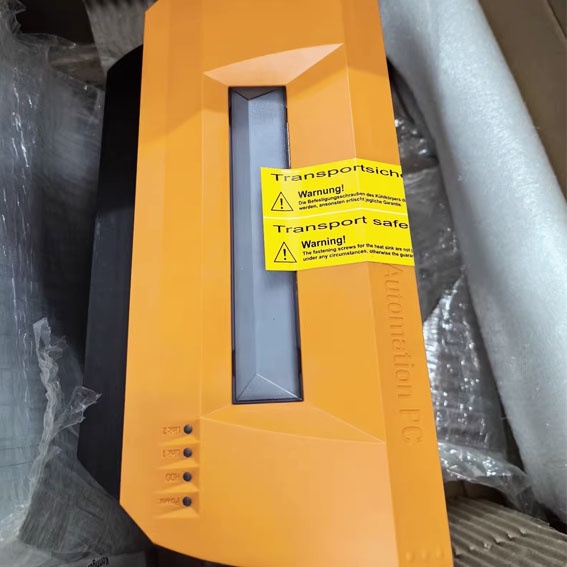

Front coverDyed orange plastic (similar to Pantone 144CV)
CoatingLight gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV)
Dimensions
Width120.8 mm with heat sink 5AC801.HS00-00 and 5AC801.HS00-02
136 mm with heat sink 5AC801.HS00-01
Height270 mm
Depth254.6 mm
WeightApprox. 2800 g (component-dependent)
