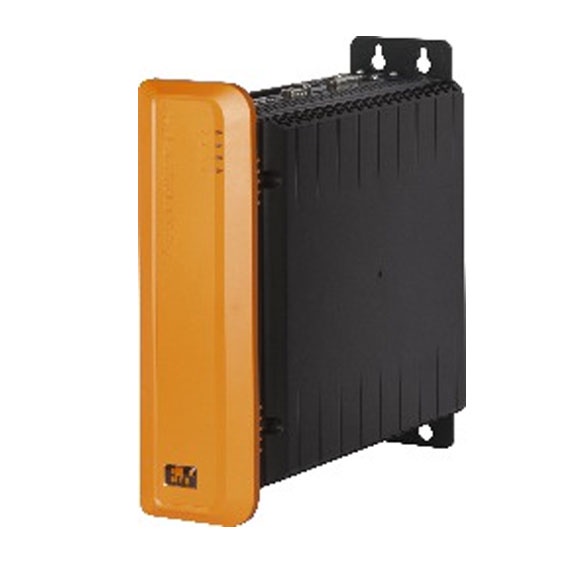

B&R 5PC910.SX01-00

Product description:

Model: 5PC910.SX01-00
Brand: B&R
Type: 1-slot APC910 system unit
Slot for a bus unit with 1 PCI or 1 PCIe slot
Slot for 1 slide-in compact drive
Slot for 2 interface options
SDL/DVI/Monitor and DisplayPort interfaces
CFast slot
Warranty: 100% New Original
Shipping: Fast Global Shipping via FedEx and DHL Express
Get a price
Send a email

Product introduction

General information
LEDsPower, HDD, Link, Run
B&R ID code0xD6DA
CoolingPassive via heat sink and optionally supported with an active fan kit
Battery
TypeRenata 950 mAh
Service life4 years
RemovableYes, accessible behind the front cover
VariantLithium ion
Power buttonYes
Reset buttonYes
BuzzerYes
Certifications
CEYes
UKCAYes
CRA (Cyber Resilience Act)Evaluation ongoing
ULcULus E115267
Industrial control equipment
DNVTemperature: B(0 to 55°C)
Humidity: B(up to 100%)
Vibration: A(0.7 g)
EMC: B(bridge and open deck)
CCSYes
LRENV3
KRYes
ABSYes
BVEC31B
Temperature: 5 - 55°C
Vibration: 0.7 g
EMC: Bridge and open deck
Controller
BootloaderBIOS
Real-time clock
Battery-backedYes
Power failure logic
ControllerMTCX
Buffer time10 ms
Memory
TypeDepends on the CPU board being used
Memory sizeDepends on the CPU board being used
Graphics
ControllerDepends on the CPU board being used
Interfaces
COM1
TypeRS232, modem supported, not galvanically isolated
VariantDSUB, 9-pin, male
UART16550-compatible, 16-byte FIFO buffer
Max. baud rate115 kbit/s
CFast slot
Quantity1
TypeSATA III (SATA 6.0 Gbit/s)
USB
Quantity5
Type4x USB 3.0 (top)
1x USB 2.0 (front)
VariantType A
Transfer rateLow speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) to SuperSpeed (5 Gbit/s)
Current-carrying capacityMax. 1 A per connection
Ethernet
Quantity2
VariantRJ45, shielded
Transfer rate10/100/1000 Mbit/s
Max. baud rate1 Gbit/s
DisplayPort
Quantity1
VersionDepends on the CPU board being used
Panel/Monitor interface
VariantDVI-I
TypeSDL/DVI/Monitor
Slots
PCI/PCIe slots
Quantity1 PCI slot or 1 PCIe slot
Slide-in drives
Quantity-
Slide-in compact drives
Quantity1
TypeSATA III (SATA 6.0 Gbit/s)
Interface option2
Monitor/Panel optionNo
Add-on UPS slotYes
Slot for fan kitYes
Electrical properties
Nominal voltage24 VDC ±25%, SELV
Nominal currentMax. 5.5 A
Inrush currentMax. 60 A for < 300 μs
Overvoltage category per EN 61131-2II
Galvanic isolationYes
Operating conditions
Pollution degree per EN 61131-2Pollution degree 2
Degree of protection per EN 60529IP20
Ambient conditions
Temperature
OperationComponent-dependent
Storage-20 to 60°C
Transport-20 to 60°C
Relative humidity
OperationComponent-dependent
StorageComponent-dependent
TransportComponent-dependent
Vibration
Operation (continuous)2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Operation (occasional)2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Storage2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Transport2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock
Operation15 g, 11 ms
Storage30 g, 6 ms
Transport30 g, 6 ms
Elevation
Operation-300 to 3000 m above sea level
Mechanical properties
Housing
MaterialGalvanized plate, plastic
CoatingAnthracite gray
Dimensions
Width91 mm
Height270 mm
Depth254.75 mm
Weight2050 g
