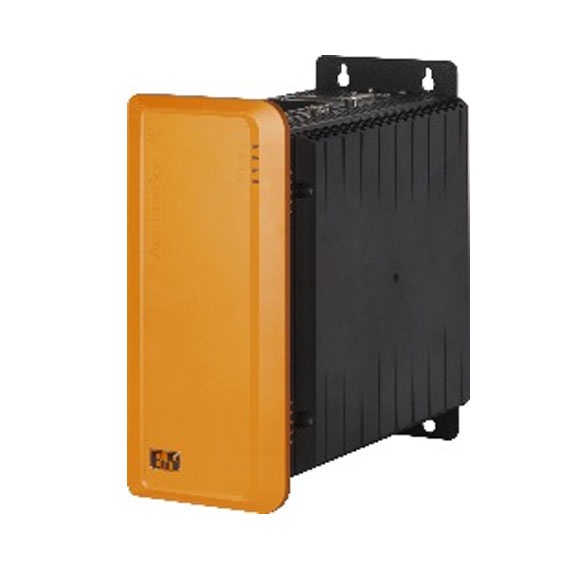

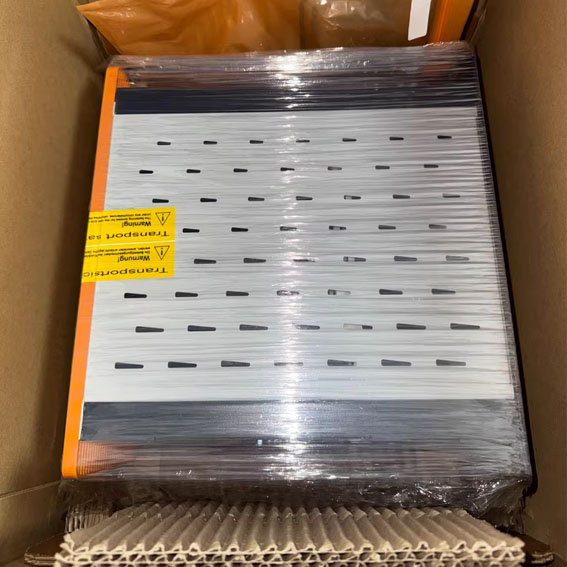

5PC910.SX02-00 B&R Industrial Automation

Product description:

Model: 5PC910.SX02-00
Brand: B&R
Type: 2-slot APC910 system unit
Warranty: 100% New Original
Shipping: Fast Global Shipping via FedEx and DHL Express

Product introduction

LEDs	Power, HDD, Link, Run
B&R ID code	0xD6DB
Cooling	Passive via heat sink and optionally supported with an active fan kit
Battery
Type	Renata 950 mAh
Service life	4 years
Removable	Yes, accessible behind the front cover
Variant	Lithium ion
Power button	Yes
Reset button	Yes
Buzzer	Yes
Certifications
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
UL	cULus E115267 Industrial control equipment
DNV	Temperature: B(0 to 55°C) Humidity: B(up to 100%) Vibration: A(0.7 g) EMC: B(bridge and open deck)
CCS	Yes
LR	ENV3
KR	Yes
ABS	Yes
BV	EC31B Temperature: 5 - 55°C Vibration: 0.7 g EMC: Bridge and open deck

Bootloader	BIOS
Real-time clock
Battery-backed	Yes
Power failure logic
Controller	MTCX
Buffer time	10 ms
Memory
Type	Depends on the CPU board being used
Memory size	Depends on the CPU board being used
Graphics
Controller	Depends on the CPU board being used

COM1
Type	RS232, modem supported, not galvanically isolated
Variant	DSUB, 9-pin, male
UART	16550-compatible, 16-byte FIFO buffer
Max. baud rate	115 kbit/s
CFast slot
Quantity	1
Type	SATA III (SATA 6.0 Gbit/s)
USB
Quantity	5
Type	4x USB 3.0 (top) 1x USB 2.0 (front)
Variant	Type A
Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) to SuperSpeed (5 Gbit/s)
Current-carrying capacity	Max. 1 A per connection
Ethernet
Quantity	2
Variant	RJ45, shielded
Transfer rate	10/100/1000 Mbit/s
Max. baud rate	1 Gbit/s
DisplayPort
Quantity	1
Version	Depends on the CPU board being used
Panel/Monitor interface
Variant	DVI-I
Type	SDL/DVI/Monitor

PCI/PCIe slots
Quantity	2 PCI slots or 1 PCI and 1 PCIe slot or 2 PCIe slots
Slide-in drives
Quantity	1
Type	Depends on the CPU board being used
Slide-in compact drives
Quantity	1
Type	SATA III (SATA 6.0 Gbit/s)
Interface option	2
Monitor/Panel option	1
Add-on UPS slot	Yes
Slot for fan kit	Yes

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	IP20

Temperature
Operation	Component-dependent
Storage	-20 to 60°C
Transport	-20 to 60°C
Relative humidity
Operation	Component-dependent
Storage	Component-dependent
Transport	Component-dependent
Vibration
Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Storage	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Transport	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock
Operation	15 g, 11 ms
Storage	30 g, 6 ms
Transport	30 g, 6 ms
Elevation
Operation	-300 to 3000 m above sea level
