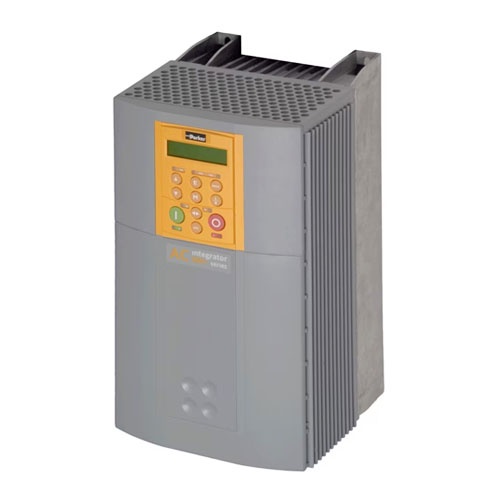

Parker 690-432230C0-B00P00-A400 AC Variable Frequency Drives

Product description:

Model: 690-432230C0-B00P00-A400
Brand: Parker
Type: 690PC Series High-Performance Industrial AC Inverter
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express

Get a price

Send a email

Product introduction

Technical Specifications

Brand:	Parker
System Board Fitted:	No
Input Voltage:	3*400/460VAC
Aux Supply Input Voltage:	None
Product Type:	AC Drive
Drive Axis Type:	Single Axis Technology
EMC Filter Included:	No
Product Series:	AC690
Output kW Rating (Normal Duty):	11
Brake Switch Option:	Yes
Input Voltage:	3*400/460 VAC
Output Power:	11 kW
Compatible Motor Type:	Induction, Spindle
Compatible Feedback Device:	Incremental Encoder
Modes of Control:	V/Hz, Sensorless Vector, Closed Loop Vector
Communication Interface:	RS232/RS485, CANopen, ControlNet, DeviceNet, Profibus, Ethernet TCP/IP, Link Communications
Operating Temperature:	0 to 45 °C, 0 to 40 °C with IP40 Cover (derate up to 50°C max.), 32 to 113 °F, 32 to 104 °F with IP40 Cover (derate up to 122°F max.)
Operating Altitude:	up to 1000 m ASL (derate > 1000m)
Overload Rating:	Heavy Duty Rating (Constant Torque) : 150% for 60s %, Heavy Duty Rating (Constant Torque) : 180% for 1s %, Normal Duty Rating (Variable Torque - pumps and fans) : 115% for 10s %
Specifications Met:	CE (EMC & LVD), UL Listed, cUL Listed
