Description

• General instruction manual

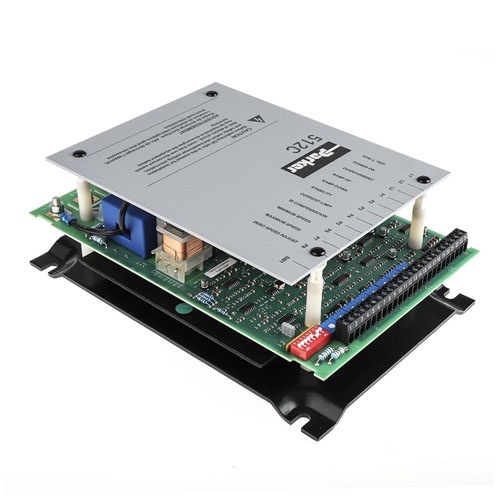

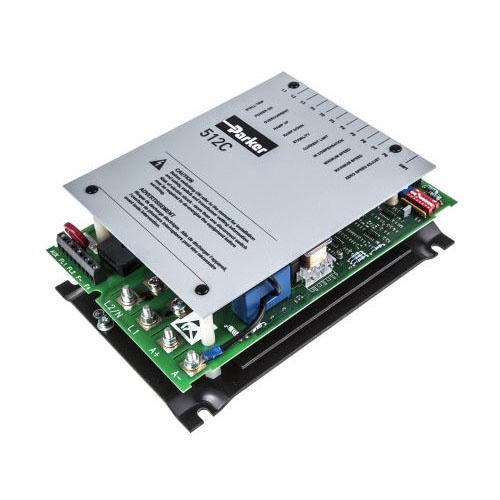

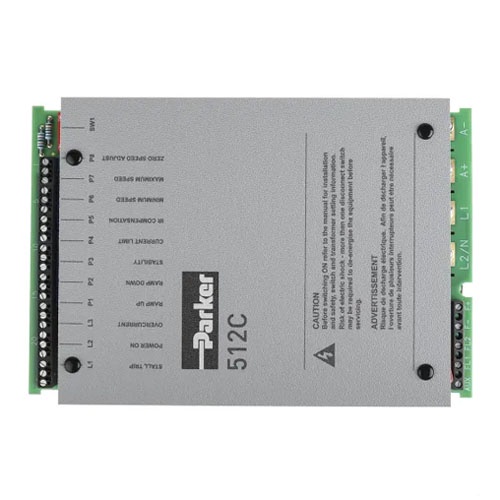

• 512C series speed controller
• The 512C series isolated DC motor speed controllers are suitable for use with shunt and permanent magnet motors.
• Drive Normal Relay Driver Output - 24 V dc Speed Trim Input
• Features of 512C/514C Series Speed Controllers
• Single-phase input voltage 110/120 V, 220/240 V, or 380/415 V ±10% jumper selectable Linear current feedback for accurate torque Zero speed or zero set point relay driver output - 24 V dc All setpoint outputs Stall detect and trip Field bridge suitable for UK or European voltages Overload capacity: 150% of nominal current for 60 seconds Adjustable maximum current level Adjustable maximum/minimum speed
• Adjustable IR compensation (for armature voltage feedback speed control) Adjustable speed stability Independent control of speed ramp-up and ramp-down times (0-40 seconds) Indication of main power on, stall trip, overcurrent trip Current Switch selectable calibration Switch selectable armature/tachogenator feedback 0-10 V buffered output for speed reference or meter 0-7.5 V buffered output for current meter (7.5 V = 150%) General Instructions book
• Quantity: 1 piece
• Power supply voltage: 110-115V, 220-240V, 380-415V
• Allowable current value: 16 A
• Rated Voltage: 360Vdc
• Compatible Motor Type: Permanent Magnet
• Control input: Voltage
• Mounting Style: Wall Mount
• Phase 1
• Length: 240mm
• Width: 160mm
• Depth: 90mm
• Dimensions: 240 x 160 x 90mm
• Operating temperature range: 0 to +40°C
• RoHS Compliance Status: N/A
