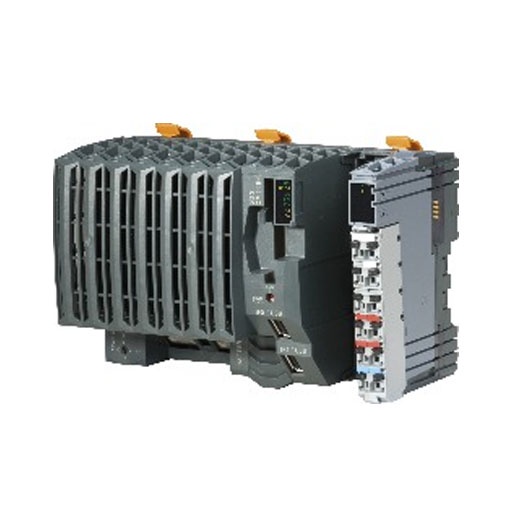

B&R X20CP1485-1 X20 PLC CPU Module

Product description:

Model: X20CP1485-1
Brand: B&R
Type: X20 Series Ultra-Compact PLC CPU (1 Slot)
Description:
Intel Celeron 400 Performance with additional I/O processor
Ethernet, POWERLINK and USB onboard
1 slot for modular interface expansion
CompactFlash as removable application memory
Fan-free
Extremely compact
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express
Get a price
Send a email

Product introduction


Short description
Interfaces1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
System moduleCPU
General information
B&R ID code0xA2AB
CoolingFanless
Status indicatorsCPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery
Diagnostics
BatteryYes, using LED status indicator and software
CPU functionYes, using LED status indicator
CompactFlashYes, using LED status indicator
EthernetYes, using LED status indicator
POWERLINKYes, using LED status indicator
OvertemperatureYes, using LED status indicator
Diagnostics - Fan-
Support
ACOPOS supportYes
Visual Components supportYes
Power consumption without memory card, interface module and USB10.5 W
Internal power consumption of X2X Link and I/O power supply
Bus1.42 W
Internal I/O0.6 W
Additional power dissipation caused by actuators (resistive) [W]-
Electrical isolation
IF1 - IF2Yes
IF1 - IF3Yes
IF1 - IF4No
IF1 - IF5No
IF1 - IF6Yes
IF2 - IF4Yes
IF2 - IF5Yes
IF3 - IF4Yes
IF3 - IF5Yes
IF4 - IF5No
IF4 - IF6Yes
IF5 - IF6Yes
PLC - IF1No
PLC - IF2Yes
PLC - IF3Yes
PLC - IF4No
PLC - IF5No
PLC - IF6Yes
Certifications
CEYes
UKCAYes
ATEXZone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
ULcULus E115267
Industrial control equipment
HazLoccCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5
DNVTemperature: B(0 to 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)
CCSYes
LRENV1
KRYes
ABSYes
BVEC33B
Temperature: 5 - 55°C
Vibration: 4 g
EMC: Bridge and open deck
KCYes
CPU and X2X Link power supply
Input voltage24 VDC -15% / +20%
Input currentMax. 2.2 A
FuseIntegrated, cannot be replaced
Reverse polarity protectionYes
X2X Link power supply output
Nominal output power7 W
Parallel connectionYes
Redundant operationYes
Input I/O power supply
Input voltage24 VDC -15% / +20%
FuseRequired line fuse: Max. 10 A, slow-blow
Output I/O power supply
Nominal output voltage24 VDC
Permissible contact load10 A
Power supply - General information
Status indicatorsOverload, operating status, module status, RS232 data transfer
Diagnostics
RS232 data transferYes, using LED status indicator
Module run/errorYes, using LED status indicator and software
OverloadYes, using LED status indicator and software
Electrical isolation
I/O supply - I/O power supplyNo
CPU/X2X Link supply - CPU/X2X Link power supplyYes
Controller
CompactFlash slot1
Real-time clockNonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C
FPUYes
Processor
TypeCeleron 400
L2 cache256 kB
L1 cache for data and program code2x 16 kB
Integrated I/O processorProcesses I/O data points in the background
Modular interface slots1
Remanent variablesMax. 256 kB
Shortest task class cycle time400 µs
Typical instruction cycle time0.0055 µs
Data buffering
Battery monitoringYes
Lithium batteryAt least 3 years
Standard memory
RAM64 MB SDRAM
User RAM1 MB SRAM
Interfaces
Interface IF1
TypeRS232
VariantConnection via 12-pin terminal block TB12
Transfer rateMax. 115.2 kbit/s
Interface IF2
TypeEthernet
VariantShielded RJ45
Line lengthMax. 100 m between 2 stations (segment length)
Transfer rate10/100 Mbit/s
Interface IF3
FieldbusPOWERLINK V1/V2
Type100BASE-T (ANSI/IEEE 802.3)
VariantShielded RJ45
Line lengthMax. 100 m between 2 stations (segment length)
Transfer rate100 Mbit/s
Interface IF4
TypeUSB 1.1
VariantType A
Max. output current0.5 A
Interface IF5
TypeUSB 1.1
VariantType A
Max. output current0.5 A
Interface IF6
TypeX2X Link master
Quantity1
Operating conditions
Mounting orientation
HorizontalYes
VerticalYes
Installation elevation above sea level
0 to 2000 mNo limitation
>2000 mReduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529IP20
Ambient conditions
Temperature
Operation
Horizontal mounting orientation0 to 55°C
Vertical mounting orientation0 to 50°C
Derating-
Storage-25 to 70°C
Transport-25 to 70°C
Relative humidity
Operation5 to 95%, non-condensing
Storage5 to 95%, non-condensing
Transport5 to 95%, non-condensing
Mechanical properties
NoteOrder application memory (CompactFlash) separately.
Backup battery included in delivery
X20 end cover plate (right) included in delivery
12-pin X20 terminal block included in delivery
Interface module slot covers included in delivery
Dimensions
Width150 mm
Height99 mm
Depth85 mm
