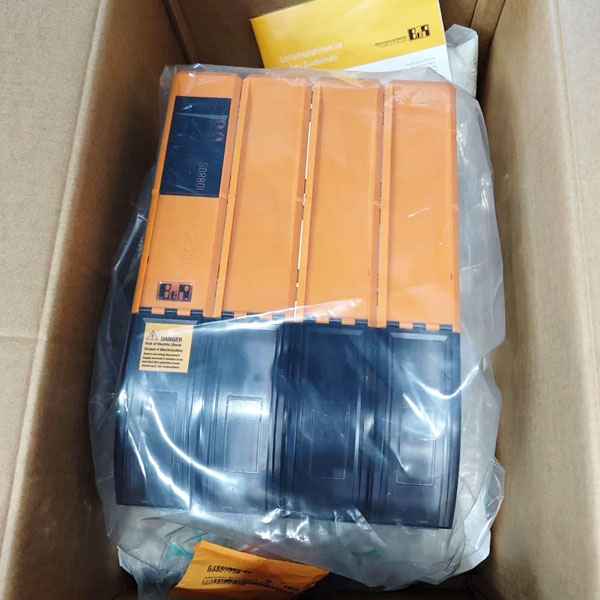

B&R 8BVP0880HW00.004-1 ACOPOSmulti power supply module

Product description:

Model: 8BVP0880HW00.004-1
Brand: B&R
Type: ACOPOSmulti HV Power Module
Key Specs: 88 Aeff, 315-800 VDC Bus, PFC & Regenerative Function
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express

Get a price

Send a email

Product introduction

General information

B&R ID code	0xA6A2
Support
Dynamic node allocation (DNA)	Yes
Cooling and mounting type	Wall mounting
Slots for plug-in modules	2
Certifications
CE	Yes
UKCA	Yes
UL	cULus E225616 Power conversion equipment
KC	Yes

Mains connection

Network configurations	TT, TN-S, TN-C-S
Mains input voltage	3x 220 to 3x 480 VAC ±10%
Frequency	50 / 60 Hz ±4%
Total harmonic distortion current (THDi)	<0.2%
Total harmonic distortion voltage (THDu)	<1%
Installed load	Max. 62 kW
Inrush current at 400 VAC	Max. 133 A
Switch-on interval	>300 s
Max. chargeable DC bus capacitance depending on mains voltage
230 VAC	34.8 mF
400 VAC	11.5 mF
480 VAC	8 mF
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 kHz
Integrated line filter per EN 61800-3, category C3	No
Integrated regeneration choke	No
Regenerative	Yes
Power factor correction (PFC)	Yes
Line fuse	Max. 264 A (gG fuses per IEC 60269-1 or Class CC, J, T) Max. 220 A (circuit breaker per EN 60947-2 or UL 489)
Variant
L1, L2, L3, PE	M8 threaded bolts
Shield connection	Yes
Connection cross section range
Flexible and fine-stranded wires	---
Terminal cable cross section dimension of shield connection	32 to 50 mm

DC bus connection

Voltage
Nominal	750 VDC
Continuous power (supply and regeneration)	60 kW
Reduction of continuous power depending on mains input voltage
Mains input voltage <3x 400 VAC	150 W/V * (400 V - Mains input voltage)
Reduction of continuous power depending on DC bus voltage (UDC)
UDC <750 VDC	0.08 kW/V
Reduction of continuous power depending on switching frequency
Switching frequency 5 kHz	0.97 kW/K (starting at 41°C)
Switching frequency 10 kHz	0.64 kW/K (starting at -5°C)
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level	6 kW per 1000 m
Peak power (supply and regeneration)	120 kW
Power dissipation depending on switching frequency
Switching frequency 5 kHz	[0.065P²+11.4P+90] W
Switching frequency 10 kHz	[0.22P²+16.1P+185] W
DC bus capacitance	1650 µF
Protective measures
Overload protection	Yes
Short-circuit and ground fault protection	No
Variant	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC ±1.6%
Input capacitance	4.7 µF
Max. power consumption	27 W + PSLOT1 + PSLOT2 + P24 V Out + PFan8BVF...
Variant	ACOPOSmulti backplane

24 VDC Out

Quantity	2
Output voltage
DC bus voltage (UDC): 260 to 315 VDC	25 VDC * (UDC / 315)
DC bus voltage (UDC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset

Filter fan connection

Output voltage	24 V +5.8% / -0.1%
Continuous current	4.2 A
Max. overcurrent limiting	10 A
Protective measures
Overload protection	No
Short-circuit proof	Yes
Open-circuit monitoring	No
Undervoltage monitoring	No

Trigger inputs

Quantity	2
Circuit	Sink
Electrical isolation
Input - Power supply module	Yes
Input - Input	Yes
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Switching threshold
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 10 mA
Switching delay
Rising edge	52 μs ±0.5 μs (digitally filtered)
Falling edge	53 μs ±0.5 μs (digitally filtered)
Modulation compared to ground potential	Max. ±38 V

Electrical properties

Discharge capacitance	0.9 µF
Energy efficiency (IE classification)
Power dissipation relative to continuous apparent power	IE2 (10,25) 0.3% IE2 (50,25) 0.3% IE2 (10,50) 0.3% IE2 (50,50) 0.5% IE2 (90,50) 1% IE2 (10,100) 0.3% IE2 (50,100) 1% IE2 (90,100) 2.1%
Nominal losses in standby mode	10.8 W

Operating conditions

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
