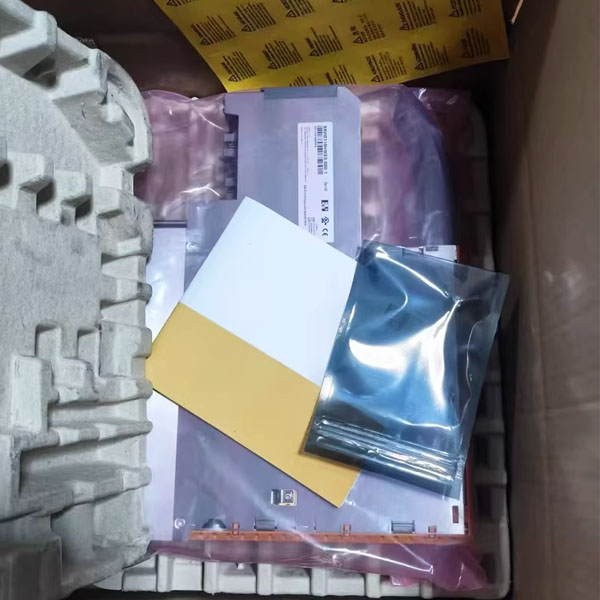

B&R 8BVI0110HWD0.000-1 Dual-Axis Servo Inverter

Product description:

Model: 8BVI0110HWD0.000-1
Brand: B&R
Type: ACOPOSmulti 11kW Dual-Axis Servo Inverter
Key Specs: 15.1 Aeff per Axis, 315-900 VDC Bus, 2 Expansion Slots
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express

Get a price

Send a email

Product introduction

General information

B&R ID code	0xA8E5
Support
Dynamic node allocation (DNA)	Yes
Cooling and mounting type	Wall mounting
Slots for plug-in modules	2
Certifications
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
Functional safety	Yes
UL	cULus E225616 Power conversion equipment
KC	Yes

DC bus connection

Voltage
Nominal	750 VDC
Continuous power consumption	22.3 kW
Power dissipation depending on switching frequency
Switching frequency 5 kHz	[0.33 * IM² + 11 * IM + 90] W
Switching frequency 10 kHz	[0.97 * IM² + 9.5 * IM + 170] W
Switching frequency 20 kHz	[1.66 * IM² + 21 * IM + 380] W
DC bus capacitance	660 µF
Variant	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC ±1.6%
Input capacitance	23.5 µF
Max. power consumption	20 W + PSLOT1 + PSLOT2 + P24 V Out + PHoldingBrake(s)
Variant	ACOPOSmulti backplane

24 VDC output

Quantity	2
Output voltage
DC bus voltage (UDC): 260 to 315 VDC	25 VDC * (UDC/315)
DC bus voltage (UDC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset

Motor connection

Quantity	2
Continuous power per motor connection	11 kW
Continuous current per motor connection	15.1 Aeff
Reduction of continuous current depending on switching frequency
Switching frequency 5 kHz	No reduction
Switching frequency 10 kHz	0.19 A/K (starting at 29°C)
Switching frequency 20 kHz	0.15 A/K (starting at -38°C)
Reduction of continuous current depending on installation elevation
Starting at 500 m above sea level	1.51 Aeff per 1000 m
Peak current per motor connection	37.7 Aeff
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Protective measures
Overload protection	Yes
Short-circuit and ground fault protection	Yes
Max. output frequency	598 Hz
Variant
U, V, W, PE	Connector
Shield connection	Yes
Terminal connection cross section
Flexible and fine-stranded wires
With wire end sleeve	0.25 to 6 mm²
Approbation data
UL/C-UL-US	30 to 10 AWG
CSA	28 to 10 AWG
Terminal cable cross section dimension of shield connection	12 to 22 mm
Max. motor line length depending on switching frequency
Switching frequency 5 kHz	25 m
Switching frequency 10 kHz	25 m
Switching frequency 20 kHz	10 m

Motor holding brake connection

Quantity	2
Output voltage	24 VDC +5.8% / -0%
Continuous current per connection	2.1 A
Max. internal resistance	0.3 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	3 Ws
Max. switching frequency	0.5 Hz
Protective measures
Overload and short-circuit protection	Yes
Open-circuit monitoring	Yes
Undervoltage monitoring	Yes
Response threshold for open-circuit monitoring	Approx. 0.5 A
Response threshold for undervoltage monitoring	24 VDC +0% / -4%

Enable inputs

Quantity	4 (2 per axis)
Circuit	Sink
Electrical isolation
Input - Inverter module	Yes
Input - Input	Yes
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Input current at nominal voltage	Approx. 30 mA
Switching threshold
Low	<5 V
High	>15 V
Switching delay at nominal input voltage
Enable 1 → 0, PWM off	Max. 20.5 ms
Enable 0 → 1, ready for PWM	Max. 100 µs
Modulation compared to ground potential	Max. ±38 V
OSSD signal connections	Permitted Max. test pulse length: 500 µs

Trigger inputs

Quantity	2
Circuit	Sink
Electrical isolation
Input - Inverter module	Yes
Input - Input	Yes
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Switching threshold
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 10 mA
Switching delay
Rising edge	52 µs ±0.5 µs (digitally filtered)
Falling edge	53 µs ±0.5 µs (digitally filtered)
Modulation compared to ground potential	Max. ±38 V

Temperature sensor connection

Quantity	2
Resistance range	500 Ω to 5 kΩ

Electrical properties

Discharge capacitance	0.44 µF
Energy efficiency (IE classification)
Power dissipation relative to continuous apparent power	IE2 (10,25) 1.5% IE2 (50,25) 1.5% IE2 (10,50) 1.7% IE2 (50,50) 1.7% IE2 (90,50) 1.7% IE2 (10,100) 2.4% IE2 (50,100) 2.4% IE2 (90,100) 2.4%
Nominal losses in standby mode	10 W

Operating conditions

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
