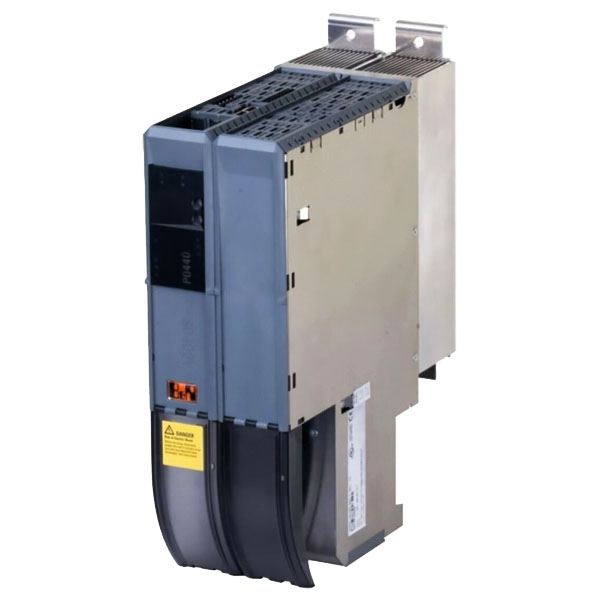

B&R 8B0P0440HW00.000-1 44A Passive Power Module

Product description:

Model: 8B0P0440HW00.000-1
Brand: B&R
Type: ACOPOSmulti HV Passive Power Supply Module
Key Specs: 3x 380-500 VAC, 44 Aeff, Wall Mount, Safe Stop
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express

Get a price

Send a email

Product introduction

Technical Data

General information

B&R ID code	0xA8EA
Support
Dynamic node allocation (DNA)	Yes
Cooling and mounting type	Wall mounting
Certifications
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
UL	cULus E225616 Power conversion equipment
KC	Yes

Mains connection

Network configurations	TT, TN-S, TN-C-S
Mains input voltage	3x 380 to 3x 500 VAC ±10%
Frequency	50 / 60 Hz ±4%
Installed load	Max. 30.4 kVA
Power dissipation with continuous power	Approx. 300 W
Inrush current at 400 VAC	10 A
Switch-on interval	>120 s
Max. chargeable DC bus capacitance depending on mains voltage
400 VAC	14.4 mF
480 VAC	10 mF
Integrated line filter per EN 61800-3, category C3	No
Integrated regeneration choke	No
Regenerative	No
Power factor correction (PFC)	No
Line fuse	Max. 132 A (gG fuses per IEC 60269-1 or Class CC, J, T) Max. 110 A (circuit breaker per EN 60947-2 or UL 489)
Variant
L1, L2, L3, PE	Connector
PE	M5 threaded bolt
Shield connection	Yes
Terminal connection cross section
Flexible and fine-stranded wires
With wire end sleeve	0.5 to 16 mm²
Approbation data
UL/C-UL-US	20 to 6 AWG
CSA	20 to 6 AWG
Terminal cable cross section dimension of shield connection	23 to 35 mm

DC bus connection

Voltage
Nominal	537 to 707 VDC
Continuous power	16 kW
Reduction of continuous power depending on mains input voltage
Mains input voltage <3x 400 VAC	40 W/V * (400 V - Mains input voltage)
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level	1.6 kW per 1000 m
Reduction of continuous power depending on cooling method	In preparation
Peak power output (supply)	48 kW
Power dissipation with continuous power	In preparation
DC bus capacitance	1320 µF
Protective measures
Overload protection	Yes
Short-circuit and ground fault protection	No
Variant	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC ±1.6%
Input capacitance	23.5 µF
Max. power consumption	12 W
Variant	ACOPOSmulti backplane

Motor holding brake connection

Terminal connection cross section
Flexible and fine-stranded wires
With wire end sleeve	0.5 to 6 mm²
Approbation data
UL/C-UL-US	20 to 8 AWG
CSA	20 to 8 AWG

Braking resistor

Peak power output	65 kW (max. 1 s)
Continuous power	3 kW
Min. braking resistance	7.5 Ω
Rated current of built-in fuse	30 A (fast-acting)
Variant
RB+, RB-, PE	Connector
Shield connection	Yes
Terminal cable cross section dimension of shield connection	23 to 35 mm
Protective measures
Overload protection	Yes
Short-circuit and ground fault protection	Yes (with RB+ by externally replaceable melting fuse)

Electrical properties

Discharge capacitance	0.9 µF
Energy efficiency (IE classification)
Power dissipation relative to continuous apparent power	IE2 (10;25) 0.2% IE2 (50;25) 0.3% IE2 (10;50) 0.2% IE2 (50;50) 0.3% IE2 (90;50) 0.6% IE2 (10;100) 0.3% IE2 (50;100) 0.6% IE2 (90;100) 1.3%
Nominal losses in standby mode	6 W

Operating conditions

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
