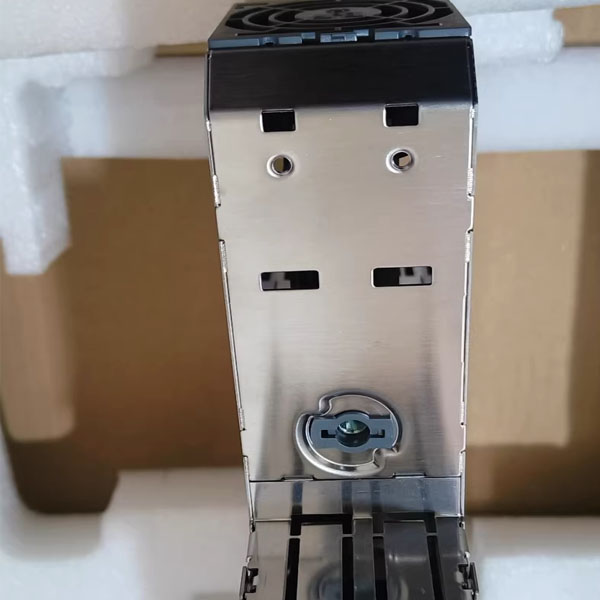

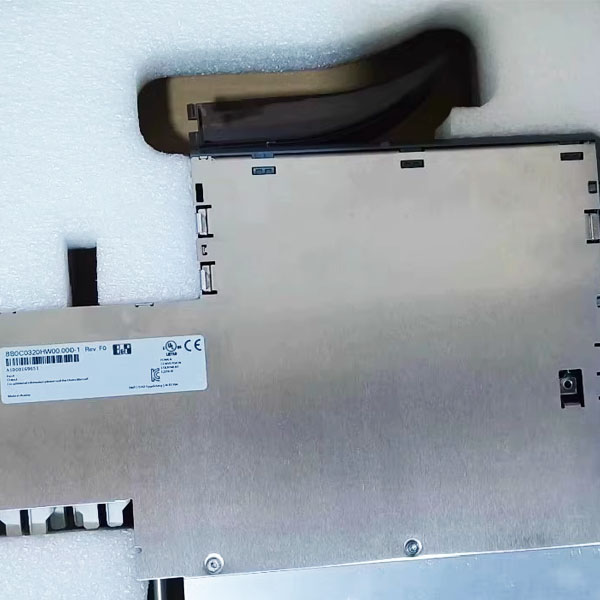

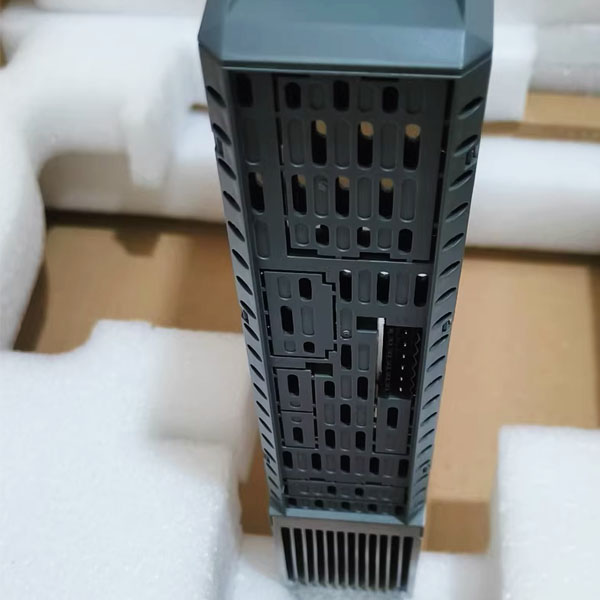

B&R 8B0C0320HW00.000-1 ACOPOSmulti 32A Auxiliary Power

Product description:

Model: 8B0C0320HW00.000-1
Brand: B&R
Type: ACOPOSmulti auxiliary supply module
Key Specs: 24 VDC (1×32 A, 1×5 A), 32 A, AS, wall mounting
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express

Get a price

Send a email

Product introduction

General information

Cooling and mounting type	Wall mounting
Certifications
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
UL	cULus E225616 Power conversion equipment
KC	Yes

DC bus connection

Voltage
Nominal	750 VDC
Operating range in continuous operation	260 to 800 VDC
Full continuous power	315 to 800 VDC
Continuous power consumption	Max. 880 W
Power dissipation with continuous power	22 W (0% continuous power) 35 W (50% continuous power) 80 W (100% continuous power)
DC bus capacitance	220 nF
Variant	ACOPOSmulti backplane

24 VDC output

Continuous power	800 W
Output voltage
DC bus voltage (UDC): 260 to 315 VDC	25 VDC * (UDC / 315)
DC bus voltage (UDC): 315 to 800 VDC	24 VDC ±6%
Continuous current	32 ADC
Reduction of continuous power at ambient temperatures starting at 40°C	No reduction
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level	80 W per 1000 m
Reduction of continuous power depending on cooling method	No reduction
Startup delay	Max. 1 s
Startup time	Approx. 5 to 20 ms
Residual ripple	Typ. 50 mVSS

24 VDC internal system power supply

Output voltage	25 VDC ±1.6%
Peak current (<4 s)
DC bus voltage (UDC): 350 to 800 VDC	42 ADC
Protective measures
No-load proof	Yes
Overload-proof	Yes
Short-circuit proof	Yes
Feedback protection	Max. 26 VDC (also when the power is switched off)
Overtemperature protection	Yes
Dielectric strength to ground	±50 VDC
Output/Input isolation	SELV / PELV requirements
Variant	ACOPOSmulti backplane

Operating conditions

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
