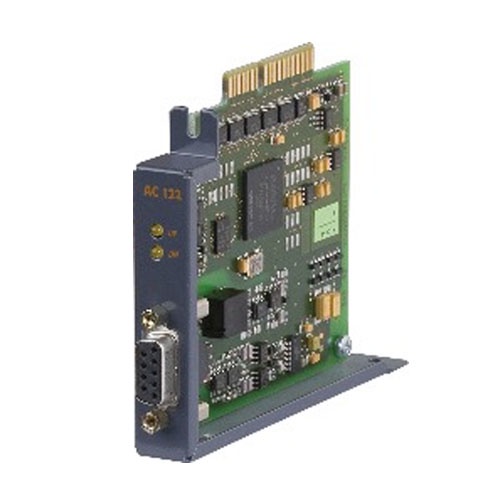

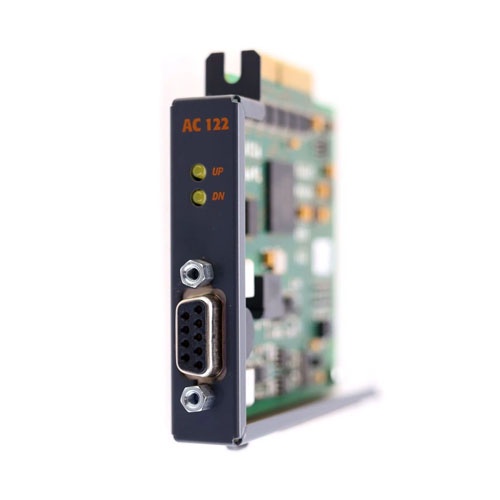

B&R 8AC122.60-3 ACOPOS BRX Resolver Interface Plug-in Module

Product description:

Model: 8AC122.60-3
Brand: B&R
Type: ACOPOS plug-in module, resolver interface 10 kHz
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express

Get a price

Send a email

Product introduction

General information

Module type	ACOPOS plug-in module
B&R ID code	0xA48B
Slot	Slots 2, 3 and 4
Max. cable length	100 m
Power consumption	Max. 2.5 W
Certifications
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
UL	cULus E225616 Power conversion equipment
KC	Yes

Resolver inputs

Reference output
Output current	Max. 50 mAeff
Differential voltage	Typ. 3.4 Veff
Frequency	10 kHz
Signal transmission	Differential signals
Angular position resolution	14 bits/rev
Module-side connection	9-pin female DSUB
Status indicators	UP/DN LEDs
Bandwidth	2.5 kHz
Encoder monitoring	Yes
Accuracy	±8 angular minutes
Electrical isolation
Resolver - ACOPOS	No
Resolver
Input frequency	10 kHz
Input voltage	3 to 7 Vrms
Number of pins	2-pin
Type	BRX
Max. phase shift	±45°
Max. elec. angular error	±10 angular minutes
Nominal transformation ratio	0.5 ±10%
Sine/Cosine inputs
Input impedance at 10 kHz (per pin)	10.4 kΩ - j 11.1 kΩ
Signal transmission	Differential signals
Encoder-ACOPOS electrical isolation	No, common-mode voltage on the sine/cosine inputs max. ±20 V

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
