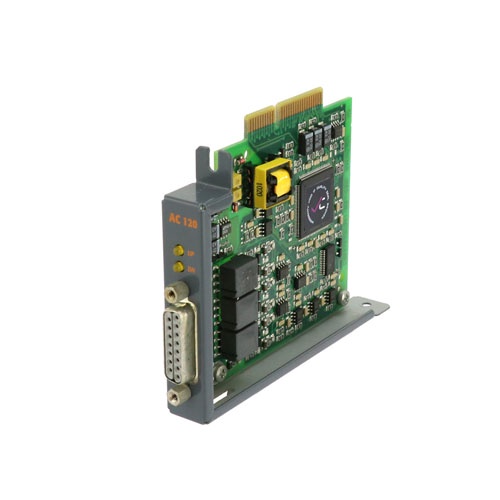

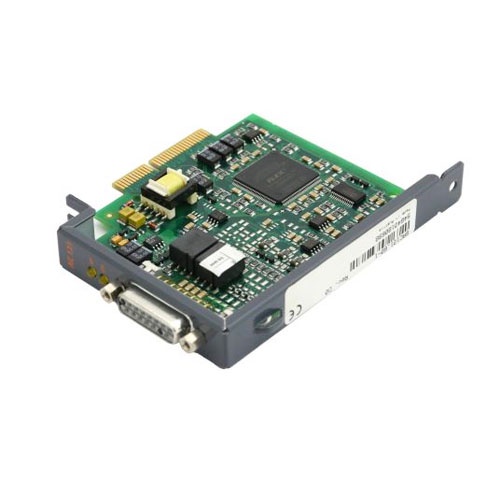

B&R 8AC120.60-1 ACOPOS EnDat 2.1 Encoder Interface Plug-in Module

Product description:

Model: 8AC120.60-1
Brand: B&R
Type: ACOPOS plug-in module, EnDat encoder and sine incremental encoder interface
Warranty: 100% New Original, 1 Year Warranty
Shipping: Fast Global Shipping via FedEx and DHL Express
Get a price
Send a email

Product introduction

General information
Module typeACOPOS plug-in module
B&R ID code0x0FCC
Slot Slots 2, 3 and 4
Power consumption
Depends on connected encoderYes
E0 ... EnDat single-turn, 512 linesMax. 2.3 W
E1 ... EnDat multi-turn, 512 linesMax. 3.1 W
E2 ... EnDat single-turn, 32 lines (inductive)Max. 3.1 W
E3 ... EnDat multi-turn, 32 lines (inductive)Max. 3.1 W
E4 ... EnDat single-turn, 512 linesMax. 2.4 W
E5 ... EnDat multi-turn, 512 linesMax. 2.7 W
E8 ... EnDat single-turn, 16 lines (inductive)Max. 2.9 W
E9 ... EnDat multi-turn, 16 lines (inductive)Max. 3.1 W
EA ... EnDat single-turn, 32 lines (inductive)Max. 2.7 W
EB ... EnDat multi-turn, 32 lines (inductive)Max. 3.0 W
Certifications
CEYes
UKCAYes
CRA (Cyber Resilience Act)Evaluation ongoing
ULcULus E225616
Power conversion equipment
KCYes
Encoder inputs
Quantity1
Module-side connection15-pin female DSUB
Status indicatorsUP/DN LEDs
Electrical isolation
Encoder - ACOPOSNo
Encoder monitoringYes
Max. encoder cable length50 m
Encoder power supply
Output voltageTyp. 5 V
Load capacity250 mA
Sense lines2, compensation of max. 2x 0.7 V
Sine/Cosine inputs
Signal transmissionDifferential signals, symmetrical
Signal frequency (-3 dB)DC up to 300 kHz
Signal frequency (-5 dB)DC up to 400 kHz
Differential voltage0.5 to 1.25 Vss
Common-mode voltageMax. ±7 V
Terminating resistor120 Ω
Resolution 16384 * Number of encoder lines
Accuracy -
Reference input
Signal transmissionDifferential signal, symmetrical
Differential voltage for low≤-0.2 V
Differential voltage for high≥+0.2 V
Common-mode voltageMax. ±7 V
Terminating resistor120 Ω
Serial interface
Signal transmissionSynchronous
ProtocolRS485
Baud rate625 kbaud
Ambient conditions
Temperature
Operation
Nominal5 to 40°C
Maximum55°C
Storage-25 to 55°C
Transport-25 to 70°C
Relative humidity
Operation5 to 85%
Storage5 to 95%
TransportMax. 95% at 40°C
